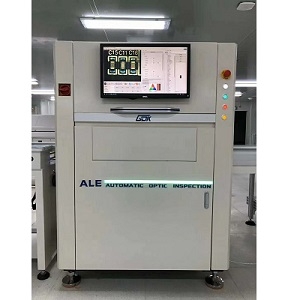

ALC-D

Product Specifications

Product Details

  • Part Number
    ALC-D
  • Manufacturer
    Shenzhen HTGD Intelligent Equipment Co., Ltd

General Parameters

  • Technology
    SMT, THT
  • Defect Analysis
    Component Missing, Misalignment, Fake Solder, Offset, Reversed Polarity, Tombstone, Bridging, Damaged Pin
  • Resolution
    15 µm
  • Field of View
    36 x 30 mm
  • Lighting
    Multi-angle surrounding LED light source
  • PCB Size
    50 x 50 mm to 510 x 330 mm, 50 x 50 mm to 510 x 600 mm
  • PCB Thickness
    0.6 - 6 mm
  • Top Clearance
    35 mm
  • Bottom Clearance
    50 mm
  • Edge Clearance Top
    3 mm
  • Edge Clearance Bottom
    3 mm
  • Conveyor Type
    One Stage lane Conveyor
  • Operating System
    Windows 10
  • Power Supply
    AC 220 V±10%, 50/60 Hz
  • Air Input
    4 to 6 Kg/cm2
  • Humidity
    25 to 80% RH4
  • Machine Dimension
    1090 x 1500 x 1534 mm
  • Net Weight
    850 kg
