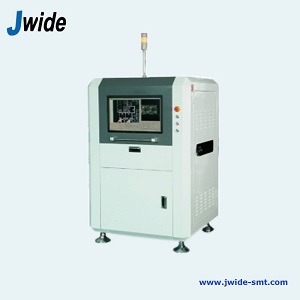

JW-600 Online

Automated Optical Inspection (AOI) Equipment by ShenZhen J-Wide Electronics Equipment Co.,Ltd (1 more product)
Download Brochure Request Quote

Note: Your request will be directed to ShenZhen J-Wide Electronics Equipment Co.,Ltd

JW-600 Online

Product Specifications

Product Details

  • Part Number
    JW-600 Online
  • Manufacturer
    ShenZhen J-Wide Electronics Equipment Co.,Ltd

General Parameters

  • Inline/Offine
    Inline
  • Technology
    SMT
  • Defect Analysis
    Component Missing, Polarity, Damaged, Wrong Part, Excessive Solder
  • Resolution
    25 µm
  • PCB Size
    400 x 360 mm
  • Component Height
    Top - 35, bottom - 75 mm
  • PCB Thickness
    0.3 - 5.0 mm
  • PCB Weight
    3 kg
  • Edge Clearance Top
    3 mm
  • Conveyor Height
    900 ± 20 mm
  • X-Y Axis Resolution
    ≦ 8 um
  • Power Supply
    AC 220V, 50/60 Hz, 1.2 kW
  • Air Input
    5 bar
  • Machine Dimension
    980 x 960 x 1600 mm
  • Net Weight
    600 kg
