TR7700L SIII

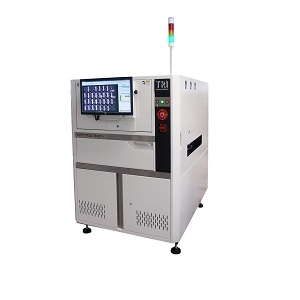

TR7700L SIII

Automated Optical Inspection (AOI) Equipment by Test Research, Inc (28 more products)

Note: Your request will be directed to Test Research, Inc

Product Specifications

Product Details

  • Part Number
    TR7700L SIII
  • Manufacturer
    Test Research, Inc

General Parameters

  • PCB Size
    660 x 610 mm
  • Camera
    4 Mpix
  • Resolution
    5.5 µm, 6 µm, 10 µm, 15 µm
  • Inspection Speed
    60, 120, 27-39, 40-60 cm²/sec
  • Defect Analysis
    Component Missing, Tombstone, Billboard, Polarity, Wrong Part , Bridging, Missing Parts, Soldering, Lifted Leads, Insufficient Solder, Scratch
  • Conveyor Height
    880 to 920 mm
  • Lighting
    Multi-phase RGB+W LED
  • PCB Thickness
    0.6 - 5 mm
  • PCB Weight
    3 kg
  • Top Clearance
    25 mm
  • Bottom Clearance
    40 mm
  • Edge Clearance Top
    5 mm
  • X-Y Axis Resolution
    1 µm
  • Net Weight
    1240 kg
  • Machine Dimension
    1300 x 1635 x 1655 mm
