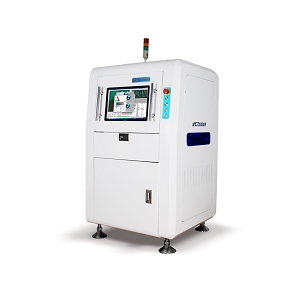

Z588

Product Specifications

Product Details

  • Part Number
    Z588
  • Manufacturer
    ZhenHuaXing Technology

General Parameters

  • Defect Analysis
    Component Missing, Misalignment, Skew, Tombstone, Billboard, Polarity, Wrong Part, Damaged, Insufficient Solder
  • Resolution
    20 µm
  • Field of View
    40.96 × 40.96 mm (20 um), 30.7 x 30.7 mm (15 um)
  • Inspection Speed
    <220 mm/s (20 um)
  • PCB Size
    50 × 50 mm to 400 × 330, 50 × 50 mm to 510 × 460 mm
  • PCB Thickness
    0.5 to 3 mm
  • Top Clearance
    ≤30 mm
  • Bottom Clearance
    ≤30 mm
  • Operating System
    Microsoft Windows 7 X64, CPu ： Intel quad-core, MEMORY:16G, HARDDISK:1TB
  • Power Supply
    AC220 V, 10%, single phase 50/60 HZ, power consumption 1000 W with uPS inside
  • Air Input
    0.5 Mpa, 40 cm ³ /min
  • Humidity
    Temperature10 - 40 Degree C, humidity 30-80% RH
  • Machine Dimension
    960 × 950 × 1550 mm
  • Net Weight
    580 kg
