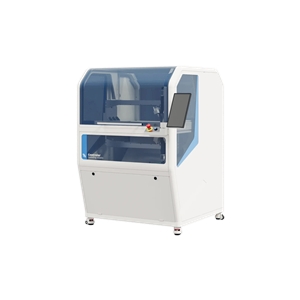

PicAI

The PicAI from Controlar is an AOI System that uses AI-driven probes for accurate and fast inspection. It uses a system that integrates a dual-sided vision module with adaptive Artificial Intelligence (AI) software to analyze probe marks and verify probe conformity. This system captures the entire PCB to detect punctures at each Test Point (TP), measuring deviations from TP’s center with ~7 μm per pixel accuracy. It can transform inspection data into actionable insights, generating detailed reports with statistical analysis, traceability, and trend monitoring. This equipment provides simultaneous top and bottom PCB inspection capability using its synchronized linear cameras and lighting modules. It ensures that the ICT fixtures are perfectly aligned to the PCBs, detecting defects before they cause costly reworks, and is designed to eliminate manual ICT fixture verification. This system requires an AC supply of 230 V and consumes 25 A of current. It has a footprint of 1050 x 1150 x 1600 mm.
