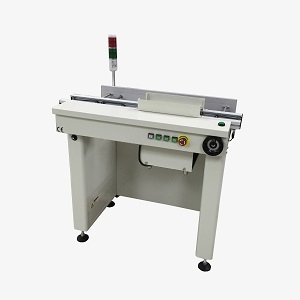

C100RCM

C100RCM

PCB Conveyor by Adtool Inc (12 more products)

Note: Your request will be directed to Adtool Inc

Product Specifications

Product Details

  • Part Number
    C100RCM
  • Manufacturer
    Adtool Inc

General Parameters

  • PCB Size Max
    50 to 350 mm
  • Conveyor Direction
    Left to Right, Right to Left
  • Conveyor Height
    900 ±20mm
  • Air Pressure
    4 to 6 kgf/cm2
  • Control Type
    PLC
  • Power Supply
    AC 110/220 V ±10 V, 50/60 Hz
  • Standard
    SMEMA
  • Net Weight
    85 kg
  • Overall Dimensions
    1500 x 730 x 1100 mm
