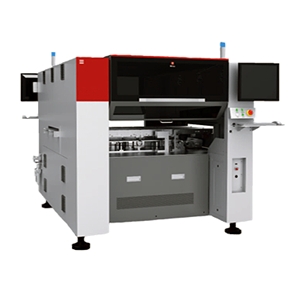

MAI-H8T

Pick and Place Machine by MIRAE CORPORATION (26 more products)
Download Brochure Request Quote

Note: Your request will be directed to MIRAE CORPORATION

MAI-H8T

Product Specifications

Product Details

  • Part Number
    MAI-H8T
  • Manufacturer
    MIRAE CORPORATION
  • Description
    Hybrid Placement & Insertion System

General Parameters

  • Type
    Auto
  • Feeder Type
    Tray Feeders,Tape Feeders,Stick Feeders,Label Feeders,Radial & Axial Feeders
  • Number of Heads
    8 Heads
  • Placement Rate
    17000 cph, 11000 cph
  • Placement accuracy
    ±0,050 mm, ±0,035 mm
  • PCB Size
    700 x 510 x 5 mm
  • Smallest Component capability
    603
  • Largest Component size
    50 x 50 mm, 90 x 30 mm
  • System Type
    Hybrid System
  • Vision system
    Yes
  • Overall Dimensions
    1580 x 2090 x 1560 mm
  • Weight
    2100 kg
