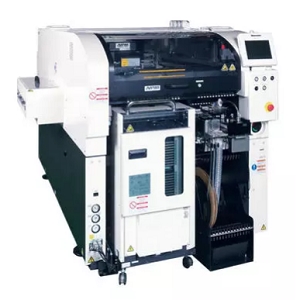

NPM-TT2

Pick and Place Machine by Panasonic Corporation (18 more products)
Download Brochure Request Quote

Note: Your request will be directed to Panasonic Corporation

NPM-TT2

The NPM-TT2 from Panasonic Corporation is a Pick and Place Machine with Max no. of feeders 13. More details for NPM-TT2 can be seen below.

Product Specifications

Product Details

  • Part Number
    NPM-TT2
  • Manufacturer
    Panasonic Corporation
  • Description
    NPM-TT2 - pick and place from Panasonic Corporation

General Parameters

  • Type
    Auto
  • Feeder Type
    Tray Feeders,Stick Feeders,Tape Feeders,Rear & Front Feeder
  • Number of Heads
    8 Heads
  • Placement Rate
    18000 cph
  • Placement accuracy
    ± 0.040 mm, ± 0.030 mm, ± 0.050 mm
  • PCB Size
    50 x 50 mm to 510 x 590 mm
  • Max no. of feeders
    13
  • Smallest Component capability
    402
  • Largest Component size
    32 x 32 mm
  • System Type
    Modular System
  • Overall Dimensions
    1300 x 2798 x 1444 mm
  • Weight
    2690 kg
