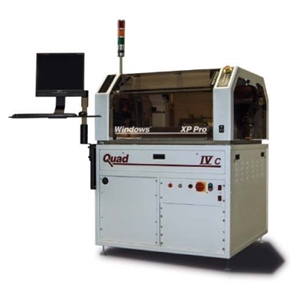

Quad 4C/68

Pick and Place Machine by PPM, Inc (11 more products)

Note: Your request will be directed to PPM, Inc

Quad 4C/68

Product Specifications

Product Details

  • Part Number
    Quad 4C/68
  • Manufacturer
    PPM, Inc
  • Description
    Quad "C" Series SMT Placement Systems

General Parameters

  • Type
    Auto
  • Feeder Type
    Matrix Feeders,Bulk Feeders,Vibratory Feeders,Tray Feeders,Tape Feeders,Electronic Feeders
  • Number of Heads
    6 Heads
  • Placement Rate
    3600 cph
  • Placement accuracy
    ±0.060 mm, ±0.100 mm
  • PCB Size
    457 x 607 mm
  • Smallest Component capability
    402
  • Largest Component size
    76.2 mm
  • Vision system
    Yes
  • Overall Dimensions
    1220 x 1220 x 1752 mm
  • Weight
    589 kg
