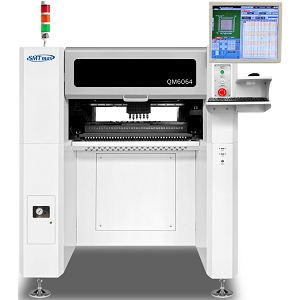

QM6064

The QM6064 from SMTmax Corp is an Automatic Pick and Place Machine that has a placement rate of 9000-10000 CPH with a working area of 500 x 370 mm. It is designed for the placement of 0201, 0402, 0603, 0805, 1206, tube components, ICs, BGAs, and mixed SMT packages. This system has a comprehensive vision inspection system featuring six high-speed identification cameras and one HD high-precision camera for handling fine-pitch components such as ICs and BGAs. This equipment includes 6x picking and placing heads, a 64-feeder capacity, and AC servo motor with double linear motion guides and ball screw-driven XY axes for precise movement control. It supports automatic PCB positioning with simultaneous recognition and picking using six heads.

The QM6064 pick and place machine provides a placement accuracy of ±0.01 mm with a repeating accuracy of ±0.02 mm. It uses automatic programming after importing PCB coordinates and supports PCB board position correction with manual and automatic mark positioning capabilities. This equipment is equipped with a 17-inch industrial display that offers manual control and configuration, along with monitoring. It requires a 110/220 V AC supply and consumes 600 W of power. This pick and place machine measures 52 x 54 x 55 inches.
