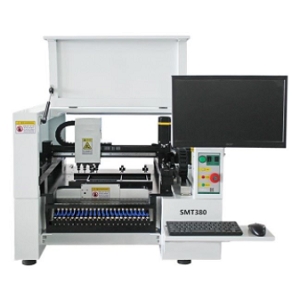

SMT380

SMT380

Pick and Place Machine by Wenzhou Yingxing Technology Co.,Ltd (7 more products)

Note: Your request will be directed to Wenzhou Yingxing Technology Co.,Ltd

The SMT380 from Wenzhou Yingxing Technology Co.,Ltd is a Pick and Place Machine with Max no. of feeders 38. More details for SMT380 can be seen below.

Product Specifications

Product Details

  • Part Number
    SMT380
  • Manufacturer
    Wenzhou Yingxing Technology Co.,Ltd
  • Description
    SMT380 - Pick and Place Machine from Wenzhou Yingxing Technology Co., Ltd

General Parameters

  • Type
    Auto
  • Number of Heads
    4
  • Placement Rate
    10000 cph
  • Placement accuracy
    ±0.025mm
  • PCB Size
    20 x 20 mm to 310 x 360 mm
  • Max no. of feeders
    38
  • Smallest Component capability
    0402, 5050
  • Largest Component size
    SOP, TQFP, QFN, BGA
  • Max travel area
    375 x 620 x 16 mm
  • Overall Dimensions
    845 x 865 x 650 mm
