E-THERM SERIES M10

Reflow Soldering Equipment by Allpoint Electronics Ltda (9 more products)
Download Brochure Request Quote

Note: Your request will be directed to Allpoint Electronics Ltda

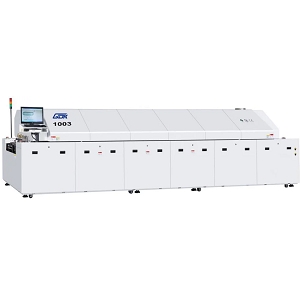

The E-THERM SERIES M10 from Allpoint Electronics Ltda is a Reflow Soldering Equipment with Heating Zone Length 3408 mm. More details for E-THERM SERIES M10 can be seen below.

Product Specifications

Product Details

  • Part Number
    E-THERM SERIES M10
  • Manufacturer
    Allpoint Electronics Ltda
  • Description
    Reflow Oven - E-THERM Series

General Parameters

  • Cooling Zones
    3 Zones
  • Heating Zones
    10 Zones
  • Heating Zone Length
    3408 mm
  • Control Type
    Touch screen + PLC
  • Conveyor System Type
    Mesh Belt, Chain Conveyor
  • Conveyor Type
    Chain + Mesh
  • Cooling Method
    Air Cooling
  • Heating Technology
    Convection Heating
  • Heat Type
    Fully forced air convection
  • General Power
    65 kW
  • Power Consumption
    8 to 15 kW
  • Temp Accuracy
    ±1 Degree C
  • Process Features
    Lead-Free Soldering Support
  • Reflow Oven Type
    Inline Reflow Oven
  • Temp Range
    350 Degree C
  • Net Weight
    1600 kG
  • Overall Dimensions
    5600 x 1200 x 1450 mm
