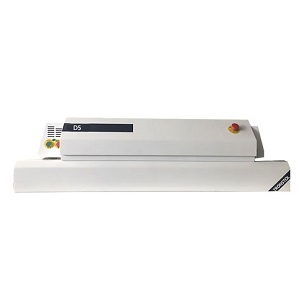

SD-5SA

The SD-5SA from GrandSeed (Hong Kong) International Co.,Ltd is a Reflow Soldering Equipment with Heating Zone Length 1750 mm, Max Pcb Width 350 mm. More details for SD-5SA can be seen below.

Product Specifications

Product Details

  • Part Number
    SD-5SA
  • Manufacturer
    GrandSeed (Hong Kong) International Co.,Ltd

General Parameters

  • Heat Type
    Hot Air
  • Temp Range
    300 Degree C
  • Temp Accuracy
    ±1 Degree C
  • Temperature control precision
    PID + SSR
  • Temperature deviation on PCB
    ±2 Degree C
  • Heating Zones
    5 Zones
  • Heating Zone Length
    1750 mm
  • Conveyor Type
    Mesh
  • Conveyor Direction
    Left to Right
  • Conveyor Speed
    0 to 2000 mm/min
  • Max Pcb Width
    350 mm
  • Power Supply
    5 wire, 3 phase 380V50HZ
  • Power Consumption
    2 kW (Normal Operating Power)
  • Startup power
    17.5 kW (Total Power)
  • Overall Dimensions
    3000 x 700 x 1400 mm (L x W x H)
  • Net Weight
    320 kg
