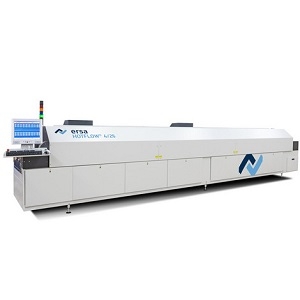

HOTFLOW 4/26

The HOTFLOW 4/26 from Kurtz Ersa is a Reflow Soldering Equipment with Max Pcb Width 45 to 560 mm. More details for HOTFLOW 4/26 can be seen below.

Product Specifications

Product Details

  • Part Number
    HOTFLOW 4/26
  • Manufacturer
    Kurtz Ersa

General Parameters

  • Cooling Zones
    4 Zones
  • Heating Zones
    26 Zones
  • Max Pcb Width
    45 to 560 mm
  • Conveyor Height
    820 to 980 mm
  • Conveyor Speed
    20 to 200 cm/min
  • Conveyor Type
    Chain
  • Cooling Method
    Water Recooling
  • Exhausting Flow Per Port
    600 m³/h
  • Heat Type
    Convection
  • General Power
    55 kW (Reduced Rating)
  • Power Consumption
    12 to 19 kW (Continuous)
  • Power Supply
    5-wire-system, 3x 400V, N, PE
  • Startup power
    83 to 102 kW (Nominal Rating)
  • Net Weight
    2800 Kg
  • Overall Dimensions
    7705 x 1410 x 1500 mm (L x W x H)
