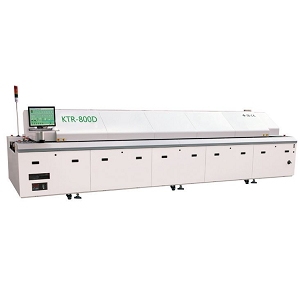

The KTR-800 from Shenzhen Kait High-Tech Co.,Ltd is a Reflow Soldering Equipment with Heating Zone Length 3110 mm, Max Pcb Width 50 to 460 mm. More details for KTR-800 can be seen below.

Product Specifications

Product Details

  • Part Number
    KTR-800
  • Manufacturer
    Shenzhen Kait High-Tech Co.,Ltd
  • Description
    Lead Free Reflow Oven With 8 Heating Zones

General Parameters

  • Reflow Oven Type
    Inline Reflow Oven
  • Temp Range
    300 Degree C
  • Temp Accuracy
    ±1 Degree C
  • Temperature control precision
    Closed loop, PID +SSR
  • Temperature deviation on PCB
    ± 1.5 Degree C
  • Heating Zones
    8 Zones
  • Heating Zone Length
    3110 mm
  • Cooling Zones
    3 Zones
  • Cooling Method
    Forced Air Cooling
  • Conveyor System Type
    Rail, Mesh Belt, Chain Conveyor
  • Conveyor Type
    Rail+ Mesh + Chain
  • Conveyor Direction
    Left to Right
  • Conveyor Speed
    300 to 2000 mm/min
  • Conveyor Height
    920 ± 20 mm
  • Max Pcb Width
    50 to 460 mm
  • Component Height
    Top - 30 mm, Bottom - 30 mm
  • Control Type
    Industrial, Computer, PLC+ Modular＋PID
  • Process Features
    Lead-Free Soldering Support
  • Power Supply
    3P 380 V/220 V 50/60 HZ
  • General Power
    64 kW (Total Power)
  • Power Consumption
    9 kW
  • Startup power
    30 kW
  • Exhausting Flow Per Port
    11 m2/h
  • Overall Dimensions
    5520 x 1430 x 1530 mm
  • Net Weight
    2400 kg
