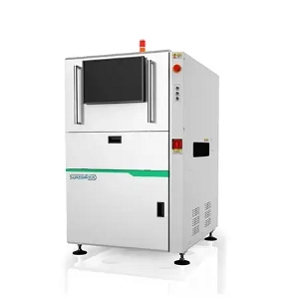

S-460i

S-460i

Solder Paste Inspection Equipment by 1Clicksmt.com (3 more products)

Note: Your request will be directed to 1Clicksmt.com

Product Specifications

Product Details

  • Part Number
    S-460i
  • Manufacturer
    1Clicksmt.com

General Parameters

  • Field of View
    36 x 36 mm
  • Defects
    Missing Paste, Shift Bridge, Shape
  • PCB Size
    460 x 460 mm
  • PCB Thickness
    0.6 - 5 mm
  • Imaging Resolution
    16 um
  • Camera
    5 M
  • Edge Clearance
    3 mm
  • Max. Solder Height
    550 um
  • Overall Dimensions
    1000 x 1000 x 1580 mm
