ST-1509

Note: Your request will be directed to Shenzhen ATTEN Technology Co., Ltd

ST-1509

The ST-1509 from Shenzhen ATTEN Technology Co., Ltd is a Soldering Station with Power Consumption 150 W, Temperature Range 80 to 480 Degree C. More details for ST-1509 can be seen below.

Product Specifications

Product Details

  • Part Number
    ST-1509
  • Manufacturer
    Shenzhen ATTEN Technology Co., Ltd
  • Description

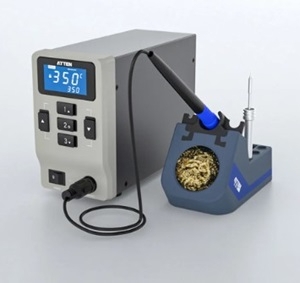

    ST-1509 Digital Soldering Station

General Parameters

  • Auto Sleep Function
    Yes
  • Auto Sleep Time
    10 to 60 min
  • Auto Standby Function
    Yes
  • Auto Standby Time
    0 to 20 min
  • Control Type
    Digital
  • Display
    Yes
  • Display Type
    LCD
  • Fuse Current
    T1.6A, T3A
  • Heating Element
    Integrated
  • Net Weight
    3 kg
  • Number of Channels
    3 Channels
  • Overall Dimensions
    210 x 88 x 150 mm
  • Power Supply
    110VAC/220VAC ±10% 50Hz/60Hz
  • Temperature Stability
    1 Degree C
  • Tip to Ground Resistance
    2 Ohms
  • Tip-to-Ground Voltage
    2 mV
  • Power Consumption
    150 W
  • Temperature Range
    80 to 480 Degree C
