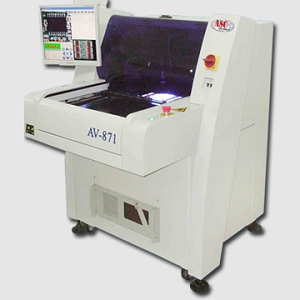

AV871

Automated Optical Inspection (AOI) Equipment by ASC International, Inc (5 more products)
Download Brochure Request Quote

Note: Your request will be directed to ASC International, Inc

AV871

Product Specifications

Product Details

  • Part Number
    AV871
  • Manufacturer
    ASC International, Inc

General Parameters

  • AOI Type
    2D
  • Technology
    SMT
  • Defect Analysis
    Component Missing, Wrong Part, Bridging, Polarity, Tombstone, Alignment
  • Resolution
    15 µm
  • Camera
    1.3 MP
  • Field of View
    12 x 16, 15 x 19, 24 x 32 mm
  • Lighting
    Multi-Layers, Multi Color High Intensity LED
  • Inspection Speed
    40 cm2 / s
  • PCB Size
    457 x 508 mm to 558 x 660 mm
  • Operating System
    P4, Duo Core, 1GB, 160GB
  • X-Y Axis Resolution
    12µm – 15um -18um
  • Power Supply
    220VAC, 1ph, 50/60Hz, 1.0Kw
  • Machine Dimension
    1100 x 1100 x 1430, 1420 x 1200 x 1480 mm
  • Net Weight
    430 kg, 550 kg
