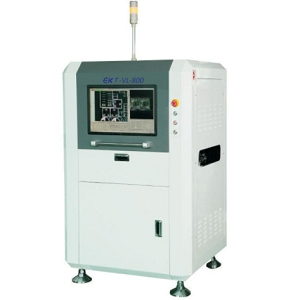

EKT-VL-800

EKT-VL-800

Automated Optical Inspection (AOI) Equipment by EKTion ShenZhen Technology Co.,LTD (11 more products)

Note: Your request will be directed to EKTion ShenZhen Technology Co.,LTD

Product Specifications

Product Details

  • Part Number
    EKT-VL-800
  • Manufacturer
    EKTion ShenZhen Technology Co.,LTD

General Parameters

  • PCB Size
    20 x 20 to 450 x 330 mm
  • Resolution
    10 µm, 15 µm, 18 µm, 20 µm, 25 µm
  • Inspection Speed
    830 mm/s
  • Defect Analysis
    Insufficient Solder, Excessive Solder, Misalignment, Bridging, Scratch, Wrong Part, Damaged, Offset, Skew
  • Lighting
    Annular stereo multi-channel color light, RGB/RGBW/RGBR/RWBR optional
  • PCB Thickness
    0.3 to 5.0 mm
  • PCB Weight
    3 kg
  • Positioning Accuracy
    X/Y - ≦8um
  • Power Supply
    AC220V,50/60Hz, 1.2 KW
  • Top Clearance
    35 mm
  • Bottom Clearance
    75 mm
  • Net Weight
    550 kg
  • Machine Dimension
    900 x 1100 x 1400 mm
  • Humidity
    10 - 35 Degree C,35 - 80% RH (non condensing)
