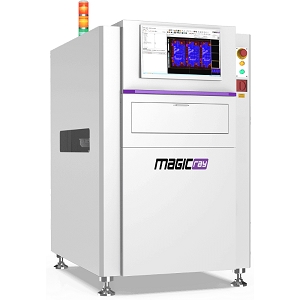

VC5300XL

Product Specifications

Product Details

  • Part Number
    VC5300XL
  • Manufacturer
    MagicRay Technology

General Parameters

  • Inline/Offine
    Inline
  • Defect Analysis
    No Coating, Insufficient Coating, Excess Coating, Bubbles, Splashes
  • AI
    Yes
  • Resolution
    10 µm, 15 µm, 24 µm
  • Camera
    5 MP, 12 MP
  • Field of View
    60 x 45 mm
  • Lighting
    UV Light + RGBW
  • Positioning Accuracy
    2 um
  • Inspection Speed
    200 - 250 ms
  • PCB Size
    650 x 610 mm
  • PCB Thickness
    0.6 - 6 mm
  • PCB Weight
    10 kg
  • Top Clearance
    25 - 90 mm
  • Bottom Clearance
    25 - 80 mm
  • Conveyor Type
    Belt
  • Conveyor Height
    900 ± 20 mm
  • Operating System
    Window 10
  • Power Supply
    Single Phase 220V, 50/60 Hz, 5A
  • Air Input
    4 to 6 bar
  • Machine Dimension
    1200 x 1370 x 1570 mm
  • Net Weight
    950 kg
