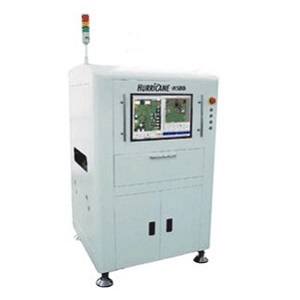

H-580i

Automated Optical Inspection (AOI) Equipment by OCIR TECH INC (4 more products)
Download Brochure Request Quote

Note: Your request will be directed to OCIR TECH INC

H-580i

Product Specifications

Product Details

  • Part Number
    H-580i
  • Manufacturer
    OCIR TECH INC

General Parameters

  • AOI Type
    2D
  • Inline/Offine
    Inline
  • Technology
    SMT
  • Defect Analysis
    Misalignment, Bridging, Insufficient Solder, Tombstone, Skew, Wrong Part
  • Resolution
    10 µm
  • Field of View
    20 x 20 mm
  • Lighting
    Dome Lighting，Ultra Bright RGB or Optional RGBW LED
  • Inspection Speed
    500 mm/sec
  • Cycle Time
    7 ms
  • PCB Size
    400 x 330 mm
  • Component size
    20 um
  • PCB Thickness
    0.3 to 3 mm
  • PCB Weight
    3 kg
  • PCB Tolerance
    2 mm
  • Top Clearance
    30 mm
  • Bottom Clearance
    30 mm
  • Operating System
    Microsoft Windows 7 Pro
  • Power Supply
    AC 220V +/-10%, Single Phase 50/60 Hz 2.5KVA
  • Machine Dimension
    950 x 1000 x 1580 mm
  • Net Weight
    580 kg
