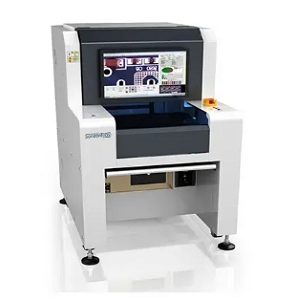

JTA-518D

Automated Optical Inspection (AOI) Equipment by SunzonTech (10 more products)
Download Brochure Request Quote

Note: Your request will be directed to SunzonTech

JTA-518D

Product Specifications

Product Details

  • Part Number
    JTA-518D
  • Manufacturer
    SunzonTech

General Parameters

  • AOI Type
    2D
  • Inline/Offine
    Offline
  • Technology
    SMT, THT
  • Defect Analysis
    Component Missing, Skew, Damaged, Reversed Polarity, Wrong Part, Polarity, Overflow, Insufficient Solder, Solder Balls, Bridging
  • Resolution
    15 µm
  • Lighting
    RGBW 6 load
  • Positioning Accuracy
    ±0.01 mm
  • PCB Size
    250 x 320 mm
  • Component Height
    Top - 35, Bottom - 110 mm
  • PCB Thickness
    0.5 - 5 mm
  • Operating System
    Windows 7
  • Power Supply
    AC 200-240V 50/60hz
  • Machine Dimension
    1136 x 1448 x 1375 mm
  • Net Weight
    600 ± 10 kg
