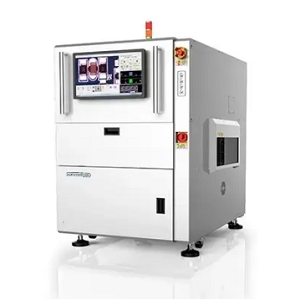

JTA-660TB

Automated Optical Inspection (AOI) Equipment by SunzonTech (10 more products)
Download Brochure Request Quote

Note: Your request will be directed to SunzonTech

JTA-660TB

Product Specifications

Product Details

  • Part Number
    JTA-660TB
  • Manufacturer
    SunzonTech

General Parameters

  • AOI Type
    2D
  • Inline/Offine
    Offline
  • Technology
    SMT, THT
  • Defect Analysis
    Component Missing, Skew, Damaged, Reversed Polarity, Wrong Part, Polarity, Overflow, Insufficient Solder, Solder Balls, Bridging
  • Resolution
    23 µm
  • Lighting
    Multispecentral Superspeed RGB+W Light Source
  • Positioning Accuracy
    ±0.01 mm
  • PCB Size
    450 x 450 mm
  • Component Height
    Top - 25, Bottom - 25 mm
  • PCB Thickness
    0.5 - 5 mm
  • Operating System
    Windows 7
  • Power Supply
    AC 200 - 240V1, 50/60 Hz
  • Machine Dimension
    1148 x 1390 x 1604 mm
  • Net Weight
    1600 ± 10 kg
