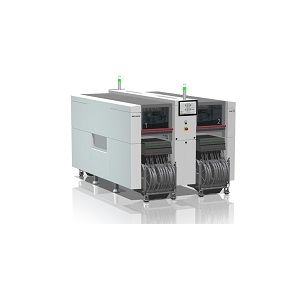

SIPLACE X4 S

Pick and Place Machine by ASMPT GmbH & Co. KG SMT Solutions (13 more products)
Download Brochure Request Quote

Note: Your request will be directed to ASMPT GmbH & Co. KG SMT Solutions

SIPLACE X4 S

Product Specifications

Product Details

  • Part Number
    SIPLACE X4 S
  • Manufacturer
    ASMPT GmbH & Co. KG SMT Solutions

General Parameters

  • Type
    Auto
  • Feeder Type
    Smart Feeders,Intelligent Feeders
  • Number of Heads
    3 Heads
  • Placement Rate
    150,000 cph
  • Placement accuracy
    up to 25 µm
  • PCB Size
    up to 850 x 650 x 8,5mm
  • Smallest Component capability
    0201M
  • Largest Component size
    200 × 150 × 25 mm
  • System Type
    Modular System
  • Vision system
    Digital Vision
  • Overall Dimensions
    1948 x 2647 x 1630 mm
  • Weight
    up to 10 kg
  • Note :
    Vision system: digital vision, Placement Rate: 150.000 cph, max no. of feeders: 160 x 8 mm
