SMT380-X

Note: Your request will be directed to Wenzhou Yingxing Technology Co.,Ltd

SMT380-X

Product Specifications

Product Details

  • Part Number
    SMT380-X
  • Manufacturer
    Wenzhou Yingxing Technology Co.,Ltd
  • Description

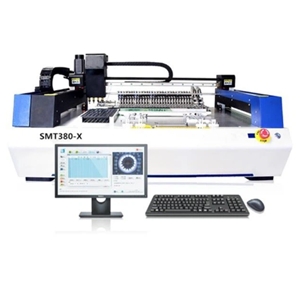

    Pick and place machine SMT380-X with 4heads+HIWIN guide rail

General Parameters

  • Feeder Type
    Vibratory Feeders,Tray Feeders
  • Number of Heads
    4 Heads
  • Placement Rate
    6500 cph
  • Placement accuracy
    ± 0.025 mm
  • PCB Size
    350 x 450 mm
  • Smallest Component capability
    402
  • Largest Component size
    22 x 22 mm
  • Max travel area
    655 x 575 mm
  • System Type
    Desktop System
  • Overall Dimensions
    1185 x 840 x 560 mm
  • Weight
    123 kg
