LF300K

LF300K

Wave Soldering Equipment by Beijing Glichn S&T Development Co.,Ltd (15 more products)

Note: Your request will be directed to Beijing Glichn S&T Development Co.,Ltd

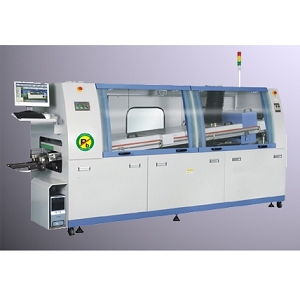

The LF300K from Beijing Glichn S&T Development Co.,Ltd is a Wave Soldering Equipment with Solder Pot Capacity 300 kg, Wave Height 0 to 12 mm. More details for LF300K can be seen below.

Product Specifications

Product Details

  • Part Number
    LF300K
  • Manufacturer
    Beijing Glichn S&T Development Co.,Ltd

General Parameters

  • Solder Pot Capacity
    300 kg
  • Wave Height
    0 to 12 mm
  • PCB Size
    50 to 300 mm
  • PCB Direction
    Left to Right
  • Conveyor Speed
    300 to 1500 mm/min
  • Flux Volume
    6LITRES
  • General Power
    22 Kw
  • Preheat Power
    5.5 kW
  • Power Supply
    3P AC380V 50Hz 63A
  • Net Weight
    800 kg
  • Overall Dimensions
    3150 x 1200 x 1700 mm

Technical Documents

View more details on the manufacturer's website
