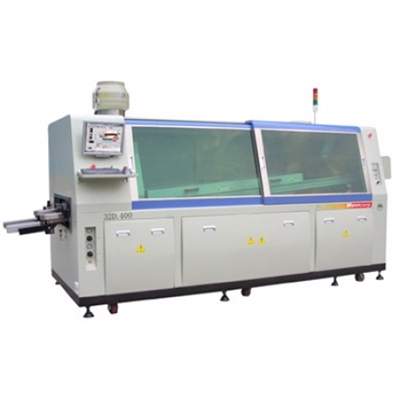

32.400 Wave Soldering Machine

32.400 Wave Soldering Machine

Wave Soldering Equipment by Manncorp (4 more products)

Note: Your request will be directed to Manncorp

The 32.400 Wave Soldering Machine from Manncorp is a Wave Soldering Equipment with Solder Pot Capacity 420 Kg, Wave Width 410 mm, Wave Height 10 mm (0.4"). More details for 32.400 Wave Soldering Machine can be seen below.

Product Specifications

Product Details

  • Part Number
    32.400 Wave Soldering Machine
  • Manufacturer
    Manncorp

General Parameters

  • Solder Pot Capacity
    420 Kg
  • Wave Width
    410 mm
  • Wave Height
    10 mm (0.4")
  • PCB Size
    400 x 400 mm
  • Conveyor Angle
    4° to 7° (adjustable)
  • Conveyor Speed
    0.5 - 2.2 m/min (20" - 87"/min)
  • General Power
    8-10 KW
  • Power Supply
    220 V, 3-Phase, 50/60 Hz 39 KW
  • Controlling System
    Windows®-Based PC
  • Solder Temperature
    Ambient - 300°C (Ambient - 572°F)
  • Air Supply
    0.4 MPa (60 psi)
  • Net Weight
    1300 Kg (2870 lbs.)
  • Overall Dimensions
    3950 x 1450 x 1680 mm
