WSM 300D

WSM 300D

Wave Soldering Equipment by Yontro Mechatrronic Systech (2 more products)

Note: Your request will be directed to Yontro Mechatrronic Systech

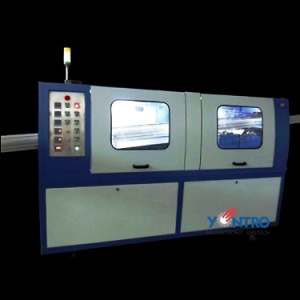

The WSM 300D from Yontro Mechatrronic Systech is a Wave Soldering Equipment with Solder Pot Capacity 230 kg, Wave Width 300 mm, Wave Height 0 to 8 mm. More details for WSM 300D can be seen below.

Product Specifications

Product Details

  • Part Number
    WSM 300D
  • Manufacturer
    Yontro Mechatrronic Systech

General Parameters

  • Wave
    Dual Wave
  • Solder Pot Capacity
    230 kg
  • Wave Width
    300 mm
  • Wave Height
    0 to 8 mm
  • Conveyor Angle
    4 to 10 Degree
  • Conveyor Speed
    0 to 2500 mm/min
  • Flux Volume
    4 Liters
  • Preheat Power
    3 kW
  • Power Supply
    440V AC, 50 Hz 3 Ph
  • Warm-Up Time
    70 min
  • Air Supply
    4 cfm, 30 PSI
  • Net Weight
    380 kg
  • Overall Dimensions
    3500 x 900 x 1800 mm

Technical Documents

View more details on the manufacturer's website
