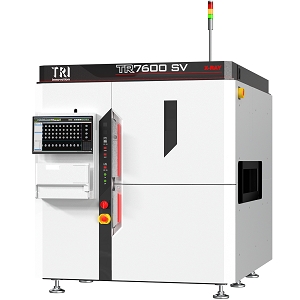

TR7600 SV Series


Product Specifications

Product Details

  • Part Number
    TR7600 SV Series
  • Manufacturer
    Test Research, Inc
  • Description
    3D Automated X-ray Inspection Machine for PCB sizes up to 1000 x 660 mm

General Parameters

  • Anode Voltage
    60 -130 kV
  • Detector Type
    Ultra-High-Speed Line-Scan CCD 3 or 5 Units (9 or 15 Sensors)
  • Inspection Area
    TR7600 SV: 950 x 520 mm, TR7600LL SV: 1000 x 660 mm
  • Resolution
    7 µm - 25 µm
  • Power Supply
    200 - 240 VAC
  • Net Weight
    TR7600 SV: 3.350 kg, TR7600LL SV: 4900 kg
  • Overall Dimensions
    TR7600 SV: 1600 x 2100 x 1800 mm, TR7600LL SV: 1730 x 2300 x 1975 mm
